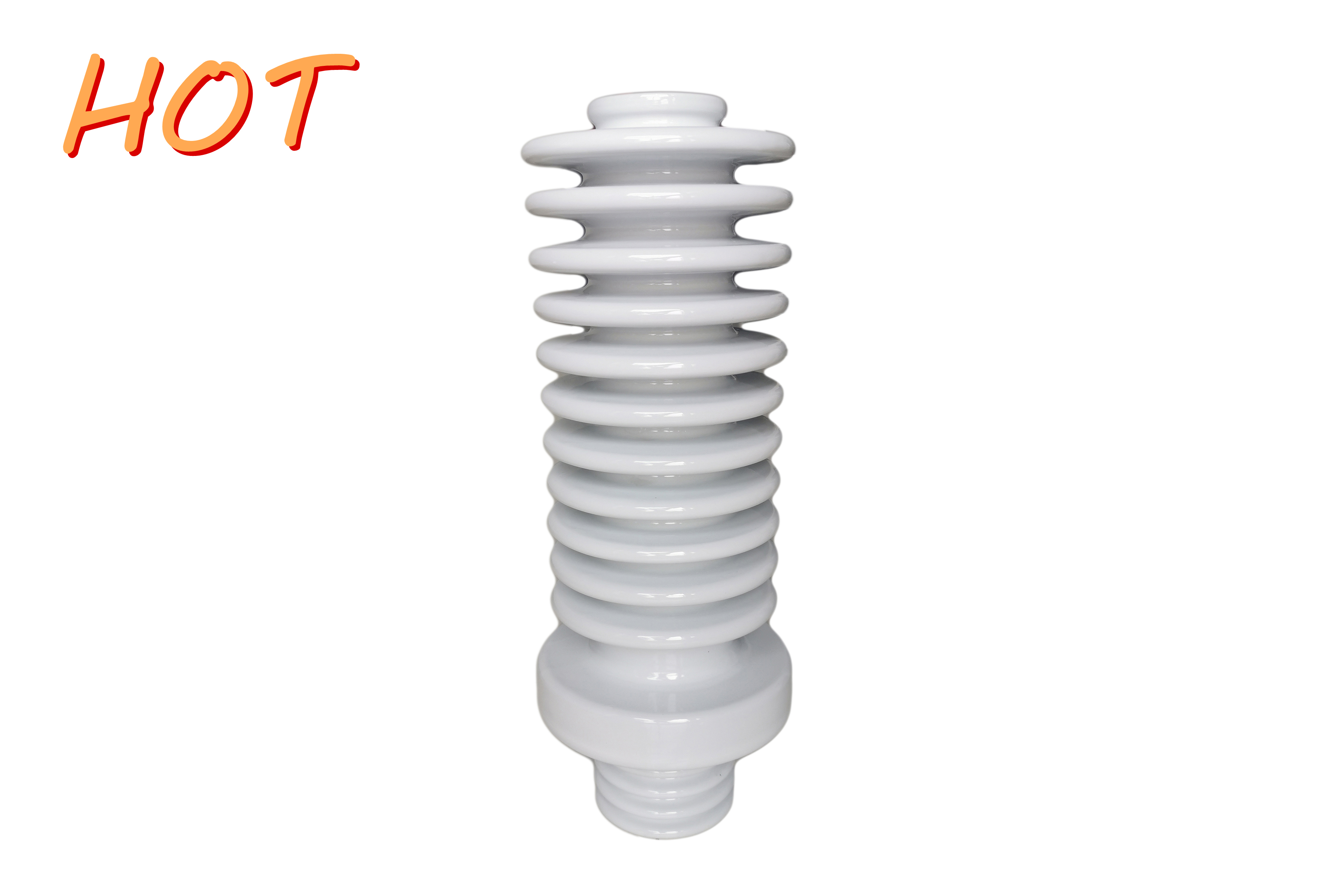

Gas Insulated Bushing Used For Circuit Breaker / White Glazed / Korea

Brand Name : CPE

Model Number : 55101

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : White

Material : Porcelain C-110

Application : Transmission and distribution of electric power

Standard : IEC

Product name : Gas insulated transformer bushing

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

500mm height IEC Standard White Glazed Gas Insulated Bushing / OEM available

Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current.

Specifications:

Gas Insulated Bushing Used For Circuit Breaker / White Glazed / Korea

Rated voltage(kV)	12(15)	24(25.8,	36(38)
Rated current(A)	630	630	630/800
Rated power frequency withstand voltage(kV)	50	60	70
Rated lightning impulse withstand voltage(kV)	110	150	170
Rated short-time current(kA, RMS)		12.5/16
Rated symmetrical interrupting current(kA,RMS)		12.5/16
Rated short circuit makig current(kA, peak)		32.5/42
Minimum operating curreent(A)	Phase	20～630A(step:5A)
	Ground	10~315A(step: 5A)
Operating Mechanism		10,000
Weight(kg)	160	190	280
Applied Standard		IEC 62271-100

Applications:

Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.

Competitive Advantages:

MOQ 500 Piece/Pieces
Loading Port Shanghai/Shenzhen
Payments L/C T/T
Supply Ability 15,000 Pieces / Month
Delivery Period 30 - 40 days after

confirmation of order
Packaging Detail: Wooden Cases,Standard free of fumigation export packing in pallet.
